ShowPro dreampix Range

Posted on Monday, December 7th, 2015

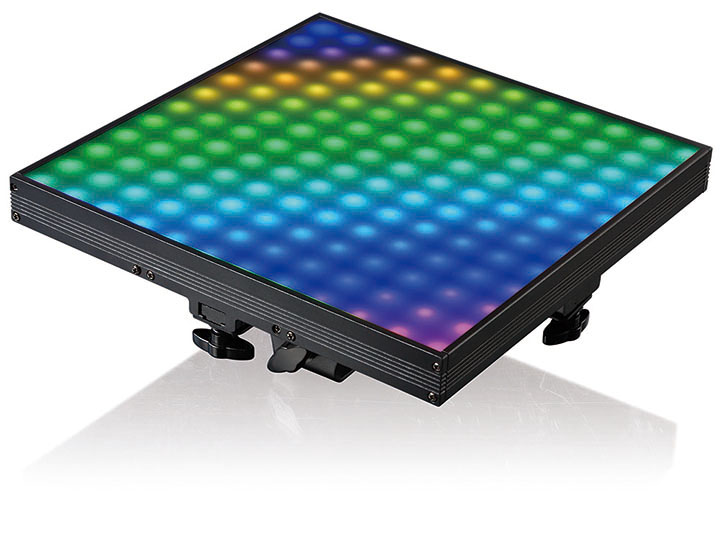

Dreampix-Tile The dreampix series brings your ideas to light with pixel mappable surfaces powered by an easy-to-use ArtNet interface that works flawlessly with popular industry-standard pixel mapping tools.

– Universal driver/ArtNet interface with OLED display
– Driver sports standard 19″ 1U rackmount chassis
– Four dreampix fixtures:  Strip, Tube, Tile, Bar
– Power/Data linking via a single XLR4 cable
– Auto addressing function simplifies setup
– User updatable firmware and uploader

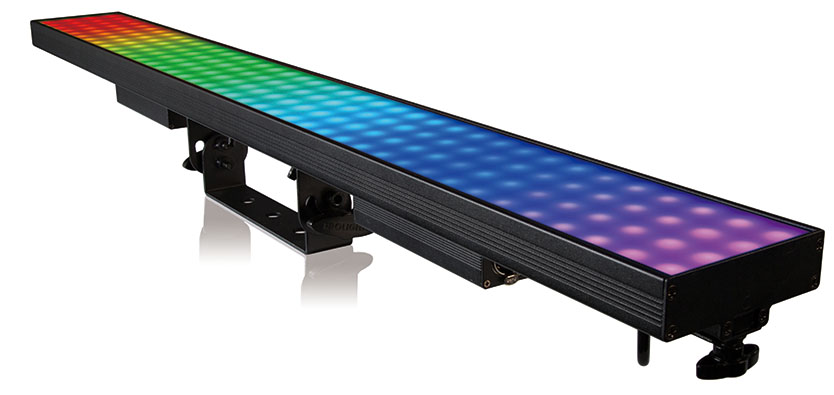

– Onboard test mode for easy installatiDreampix-Baron troubleshooting
– Multiple drivers may be networked in daisy-chain via EtherCon I/O

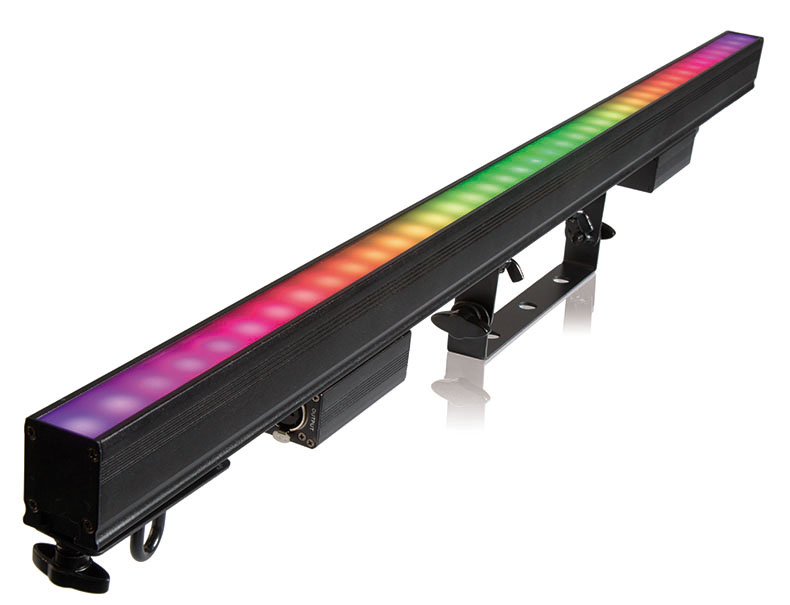

Dreampix-Strip- Easily create and configure unique creative lighting and video displays
– Choice of black, frost (opal) or clear filters
– Versatile mounting bracket design

One dreampix driver powers up to:
24 x dreampix STRIP
16 x dreampix TUBEDreampix-Strip
6 x dreampix TILE
6 x dreampix BAR
Control Protocol:  Art-Net
Menu Navigation: OLED display
Power: 100V-240V 50/60 Hz (auto-ranging)
Dreampix-BarConsumption: 350W
Power connections: Neutrik PowerCon In
Data connections: Neutrik EtherCon In/Out for Art-Net (driver)
4-pin XLR Out for data & power to fixtures

www.showtech.com.au
