Multiverse by City Theatrical

Posted on Monday, November 6th, 2017

Multiverse® is a breakthrough in wireless DMX/RDM technology that gives lighting users a new range of options for performing lighting tasks more easily than ever, while producing less disruptive radio energy. City Theatrical’s vision of the new lighting world is one in which every DMX device contains a a tiny, inexpensive Multiverse Module, and where legacy lighting products have a Multiverse Node near them, allowing entire productions containing hundreds of fixtures and dozens of universes to be operated wirelessly.

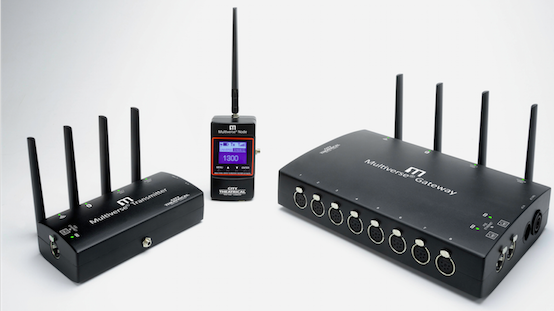

Multiverse Node is the first building block of the Multiverse system. Each Multiverse Node is a transceiver. As a single universe transmitter, it functions in a similar plug and play manner to City Theatrical’s SHoW DMX SHoW Baby®, but speaks the more advanced Multiverse language. As a receiver, it is the primary receiver in the Multiverse system, and can be part of a larger multi-universe setup. Multiverse Node contains both 2.4GHz and 900Mhz radios.

Multiverse Transmitter opens a new world in wireless DMX/RDM. Its Ethernet input allows it to take in Streaming ACN (sACN) or Art-Net and to transmit any of nine user selectable universes of DMX/RDM (five in the 2.4GHz band and four in the 900MHz band) while using only a fraction of the radio energy of any present day single universe wireless DMX transmitter. It also has a built-in Bluetooth radio receiver that allows it to communicate with City Theatrical’s multi award- winning DMXcat® app from the user’s smartphone. This gives the user smartphone control of any lighting fixture that is part of the Multiverse setup, whether it is a lighting fixture with a built-in Multiverse Module, a lighting fixture receiving its data from a Multiverse Node, or any wired fixture downstream of those devices. The Multiverse Transmitter is Wi-Fi enabled, allowing for communication and control from tablet-based Wi-Fi lighting controllers, like Luminair.

Multiverse Gateway is a transceiver, and allows the fullest use of the Multiverse system. The Multiverse Gateway utilizes four radios (Bluetooth and Wi-Fi for inputs, 900MHz and 2.4GHz for wireless DMX/RDM output), and sACN or Art-Net input. The user can choose which of the nine available universes they would like to broadcast wirelessly, and can choose another eight universes to output locally as wired DMX/RDM. Receivers on the Multiverse Gateway system can either be individual Multiverse Nodes for single wired DMX/RDM output, or additional Multiverse Gateways. When used as receivers, the Multiverse Gateway can output any of the wireless DMX universes received on any of the eight wired DMX outputs, as well as passing along up to nine universes on the sACN output.

Multiverse Module is a tiny FCC approved circuit board mounted device for lighting manufacturers that allows them to utilize all of the benefits of the Multiverse wireless lighting system.

www.citytheatrical.com
