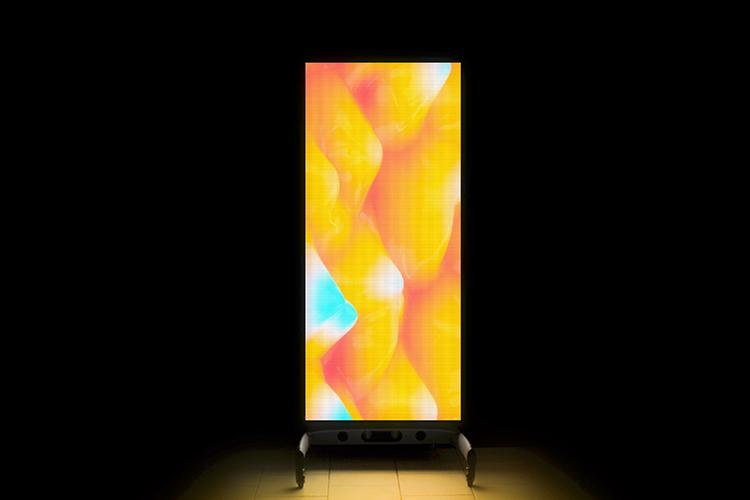

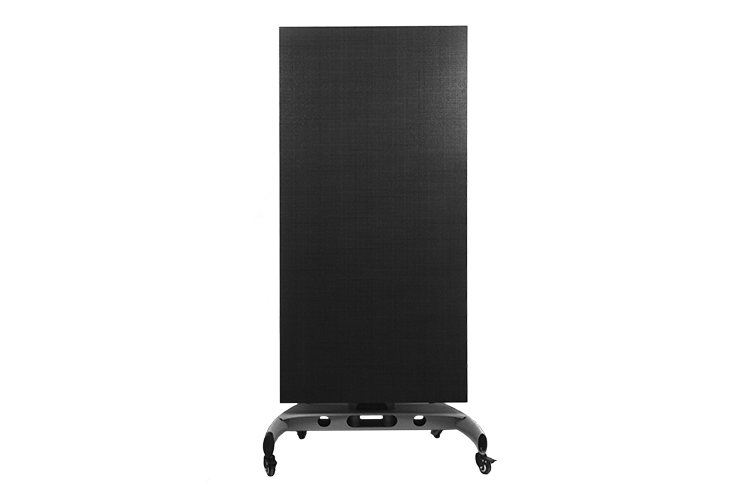

Event Pixels ADP4 – P4 Advertising Screens

Posted on Thursday, September 21st, 2017

Designed for those who want to embrace the power of Digital Advertising, but who also need a portable solution. Whether it be to void permanent installation or use a diverse range of marketing campaigns, the Event PiXELS LED Digital Display is the perfect solution for your advertising needs.



  • Plug and Play – supply power and the screen will automatically start playing content – it’s that simple!

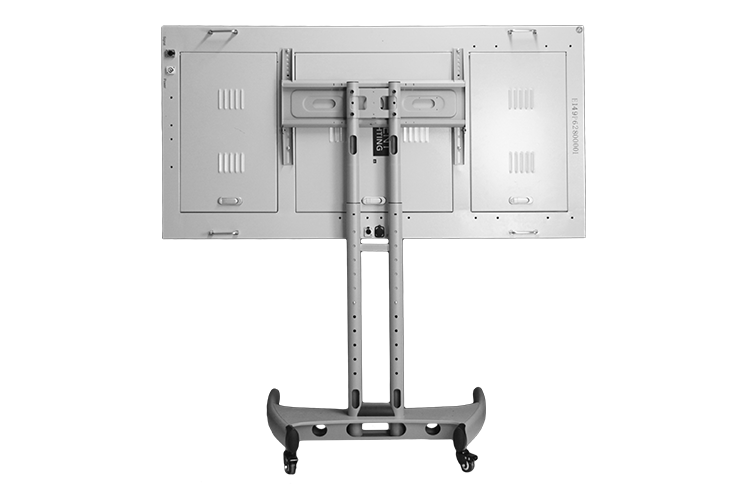

  • Mobile – portable frame on wheels which makes this display easy to move.
  • Wi-Fi and Internal storage – has Wi-Fi connection where content can be sent directly to the screen’s internal storage.
  • Orientation – Adjustable to display aspect ratio  from landscape to portrait
Module Information
  • Pixel Pitch (mm): 4
  • Pixel Density (Dots/m2): 62,500
  • Module Size (L * W mm): 256 * 128
  • LED Encapsulation: SMD2121 Black
  • Scan Rate: 16
  • Refresh Rate (Hz): ? 1,920
  • Viewing Angle: 140°
  • Best Visual Distance (m): 4 – 40
  • Brightness(cd/m2): ? 1,500
  • MTBF (hrs): 10,000

Cabinet Information

  • Housing Materials:  Aluminium (Screen), Steel (Base)
  • Cabinet Size (L * W mm): 768 * 1,536 / Customizable
  • Thickness (mm): 120
  • Weight (Kg): 60
  • Setup: Vertical / Horizontal
  • Input Voltage: 240V AC
  • Power Consumption (W/m2) : ? 600
  • IP Rating: 20
