Event Lighting’s new LED Hybrid Moving Head

Posted on Wednesday, January 10th, 2018

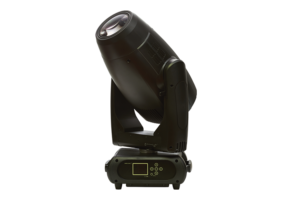

Introducing Event Lighting’s M1H420W – 420W LED Hybrid Moving Head with CMY, CTO and Zoom.

Power

  • Input Voltage: 100~240V AC, 50/60 Hz
  • Power Consumption: 590W
  • Connection: Neutrik® PowerCON – In

Photometric

  • Light Source: Advanced 6500K 420W White LED Module
  • Beam Angle: 5° to 50°
  • Output: 20050 lumen, 110000 lux on @2.5M @5°
  • PWM: 1200Hz
  • LED Lifespan: 20,000 hours

Effects

  • Dimming: 0 ~ 100%
  • Strobe: 0.5 ~26 Hz
  • Focus: Linear via DMX
  • Prism: 3 Facet & Frost
  • Iris: Yes
  • Zoom: Linear via DMX 5° to 50°

Movement 8 / 16 bit Auto Reposition

  • Pan: 630°( 4.0 sec) or 540°( 3.58 sec)
  • Tilt: 265°(2.8 sec)

Colour

  • Linear CMY & CTO
  • 8 Colours + Open

Gobos

  • Fixed: 1 x 7 + Open Fixed Gobo Wheel
  • Rotating: 1 x 7 + Open Interchangeable Rotating Gobo Wheel (Outside Ø27mm, Inside Ø20mm).

Control

  • Operational Modes: DMX, Auto Program, Sound Active, Master / Slave
  • RDM: Change DMX Address, Display Flip, X/Y Reverse and so on
  • Protocol: DMX512 (W-DMX™ Optional)
  • DMX Channels: 26 / 29 / 19 / 21
  • Interface: 5-Pin and Artnet in/out
  • Display: 2.4? Colour LCD Control Panel with Back-up Power.
  • Software Upgrade via DMX: Yes

Housing

  • Materials: ABS & Steel
  • Finishing: Matte black
  • Cooling: Multi Sensor Thermostat Controlled Variable Speed Fan
  • IP rating: IP20
  • Dimension: 369 x 437 x 658 mm
  • Net Weight: 25 kg
  • Rigging: 2pcs Omega Brackets with 1/4-turn Quick Locks
