ETC Sensor IQ 277V Now Shipping

Posted on Monday, February 6th, 2017

ETC’s Sensor IQ Intelligent Breaker System has proven itself to be a valuable addition to venues around the United States. Starting this week, a 277V version of this panel is available which expands the installation possibilities around the globe.

Sensor IQ is a top-of-the-line power-control solution for lighting systems that contain any combination of LEDs and moving lights. Sensor IQ offers total-system power control of lighting, video projection, and audio systems; all possible because of a built-in sequencer and optional isolated ground bar.

Just like the 120V version, Sensor IQ 277V includes global monitoring for the user’s entire lighting system over Ethernet including circuit-by-circuit live reporting from the user’s web browser. Additional features include advanced patching and control prioritization so the user can give control of their system to people who need it, and limit access for those who do not.

Because of its small footprint, the Sensor IQ breaker panel can be mounted nearly anywhere. It also eliminates the need for contact wiring making installation and setup easy. Sensor IQ 277V panels provide one-pole 15A, 20A, and 30A hydraulic-magnetic breakers with 0-10V, DALI, and contact input control options. This is ideal for large, commercial facilities such as arenas, stadiums, and convention centers that have a large variety of spaces and individual control requirements.

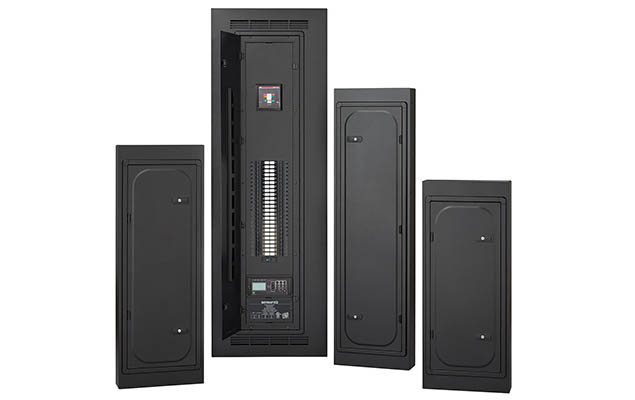

The 277V panel is available in 12-, 24-, and 48-circuit models up to 65,000A symmetrical SCCR (Short-Circuit Current Rating). Sensor IQ 277V also accepts 220V-240V feeds for non-CE international system support.
