Elation RDMX6S RDM/DMX Data Splitter

Posted on Monday, March 7th, 2016

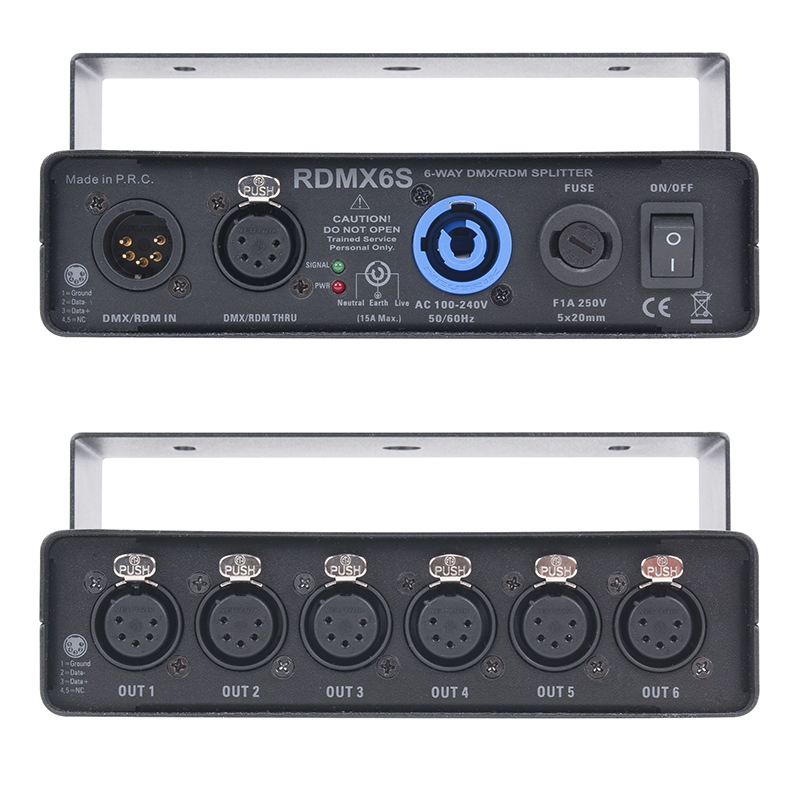

elation-RDMX6SElation’s RDMX6S 6-way RDM/DMX data splitter promises to be useful in maintaining proper data levels over long runs or several runs of RDM or DMX signal. The RDMX6S helps to correct disruptions in the signal by splitting the DMX/RDM data link into six separate branches while boosting the weak signal to its original output level before it becomes too low. RDM E1.20 compliant, the RDMX6S features opto-isolated DMX output ports with DMX loop through port with built-in termination. It houses 5pin XLR input, a 5pin XLR thru output, (6) 5pin XLR outputs and powerCON In connection. Wrapped in a rugged die-cast aluminum housing, a single-unit mounting bracket is included for truss/clamp installation and optional single and dual unit rack mount kits are available. Compact at 173 x 170 x 74 mm, L x W x H) and light at 1.0 kg, the unit’s universal multi-voltage auto switching power supply allows it to be used anywhere in the world.

www.elationlighting.com
Australian Distributor Lexair www.lexair.com.au
