Elation DW Chorus White-Light LED Battens
Posted on Wednesday, December 14th, 2016

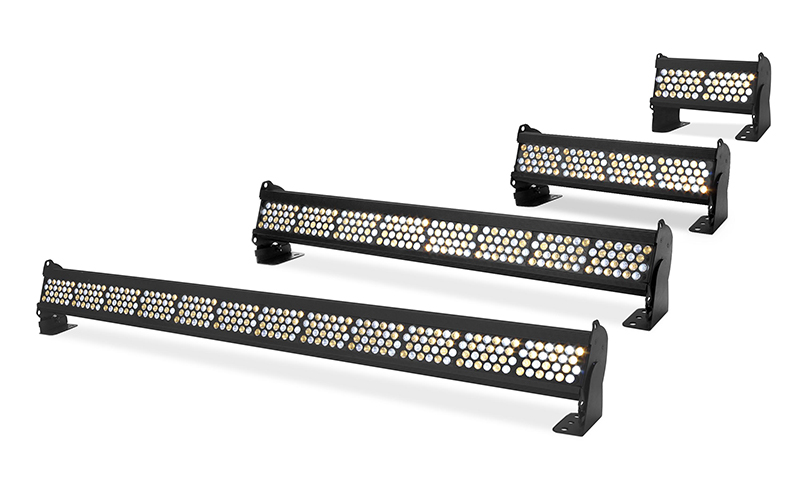

Elation Professional’s DW Chorus™ is a new series of white-light LED batten wash lights with variable white color temperature control. Useful for floodlighting surfaces and stages in even washes of dynamic light, a broad range of white colour shades combines with the versatility of four different model choices to offer the ultimate in white light flexibility.
Available in 1’ (0.3m), 2’ (0.6m), 4’ (1.2m), and 6’ (1.8m) lengths, DW Chorus fixtures use long-life individual 3W cool white / warm white Lumi™ LEDs for variable white colour temperature range control from 2,700K white tungsten to 6,700K cool white. Hue, saturation and intensity of each LED are individually controllable while LED group control allows for even further design possibilities.
Perfect for linear effects as well, a selection of variable dimming curves is provided for faster programming and a selection of strobe and chase effects add to their versatility. All fixtures in the DW Chorus series are built with rugged die-cast aluminum exteriors and operate flicker free for use in TV and other broadcast applications.
DW Chorus 12™: The DW Chorus 12 is a 12.4” (316mm) LED batten wash light housing 24 cold white and 24 warm white LEDs. The fixture emits 30,340 LUX @ 3.3’ (1m) (11° FULL ON) yet consumes a low 120W of max power. Capable of projecting bright washes of variable white light, the DW Chorus 12’s compact size means it can fit in virtually any stage setup.
DW Chorus 24™: The DW Chorus 24 is a 23.8” (604mm) LED batten wash light with 48 cold white and 48 warm white LEDs. The DW Chorus 24 emits 20,570 LUX @3.3’ (1m) (9° FULL ON) for bright washes of uniform white light and consumes a low 169W of max power.
DW Chorus 48™: The DW Chorus 48 is a 46.5” (1182mm) LED batten wash light with 96 cold white and 96 warm white LEDs. It emits a bright 32,644 LUX @3.3’ (1m) (14° FULL ON) for powerful washes of dynamic white light and consumes a low 347W of max power.
DW Chorus 72™: The DW Chorus 72 is a 69.3” (1760mm) LED batten wash light with 144 cold white and 144 warm white LEDs. It emits a bright 37,500 LUX @3.3’ (1m) (11° FULL ON) for broad and bright washes of white light from a single luminaire and consumes 510W of max power.
A host of other professional features come standard with each DW Chorus fixture like multi-channel DMX control and features like 3- and 5-pin DMX In/Out, PowerCON In/Out and RJ45 In/Out connections all come standard. All DW Chorus Series fixtures are ArtNet™, KlingNet™ and RDM (Remote Device Management) protocol capable and come with multiple-unit power linking to save on setup time and hassle. A 4-button control panel with LCD menu display provides for easy hands-on programming with easy-to-read fixture menus and messages.
An integrated rigging bracket allows for quick hanging and an auto-sensing power supply covers worldwide voltages and frequencies. The DW Chorus Series offers all the benefits of LED like greater reliability and less maintenance and consumes little power for a lower cost of ownership. With a long LED life rating, service intervals are few and far between.
